Twin Row Customized Profile Light Steel Structure Roll Forming Machine
Brief Introduction
This roll forming machine can produce two different light steel profiles according to customer's profile drawing and requirement. The design of two different profiles produced in one machine helps to save a lot of machine cost and floor area for customers.
Main Components
| 1. 3Ton Manual Decoiler | 1 unit |
| 2. Roll Forming Machine | a. Feeding Guide | 1 unit |
| b. Roll Forming Stations |
| c. Hydraulic Cutting Device |
| 3. Product Output Support Tables | 2 units |
| 4. PLC Control System | 1 unit |
| 5. Hydraulic System | 1 unit |
Work Process Of The Whole Line
Decoiling--Material Guiding--Roll Forming--Cutting
Main Machine Technical Parameters
1. Applicable Material: galvanized steel coils
2. Material Thickness: 0.4-1.2mm
3. Main Motor Power: 7.5kw
4. Forming Steps: 12 stations
5. Forming Speed: 0-15m/min
6. Control System: PLC control system
7. Hydraulic Power: 3kw
8. Roll Material: No. 45 steel
9. Shaft Material: Cr40
10. Cutting Blade Material: Cr12Mov

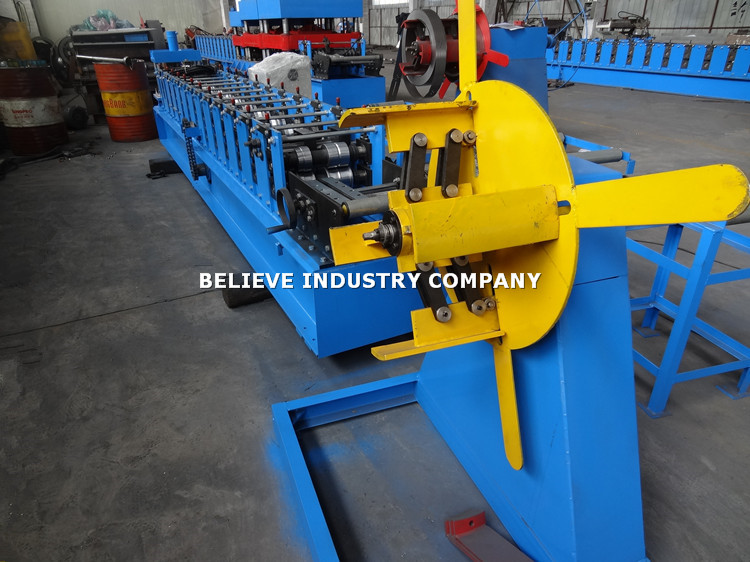

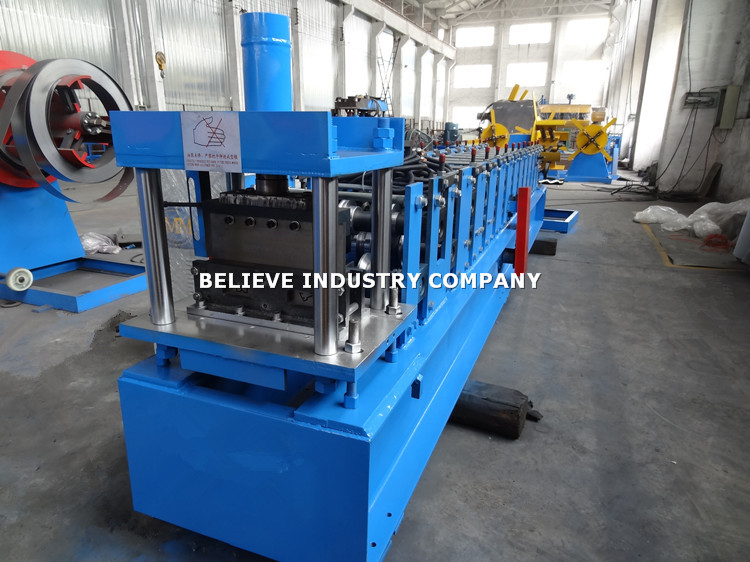

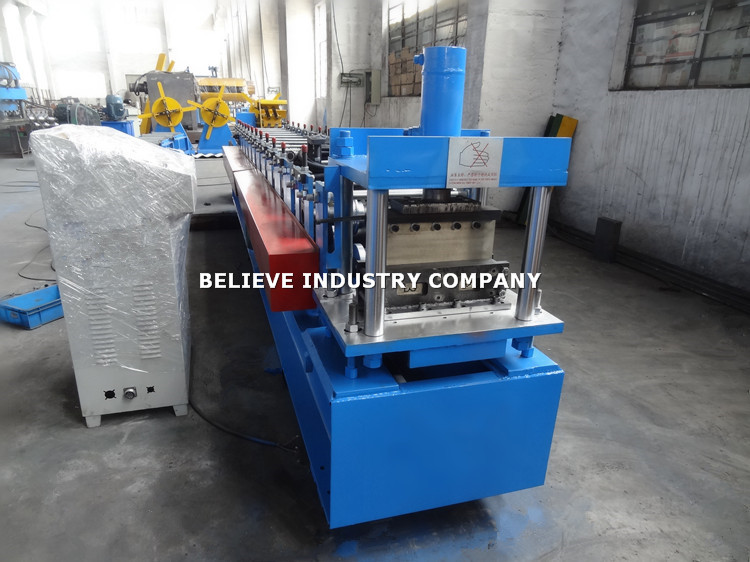

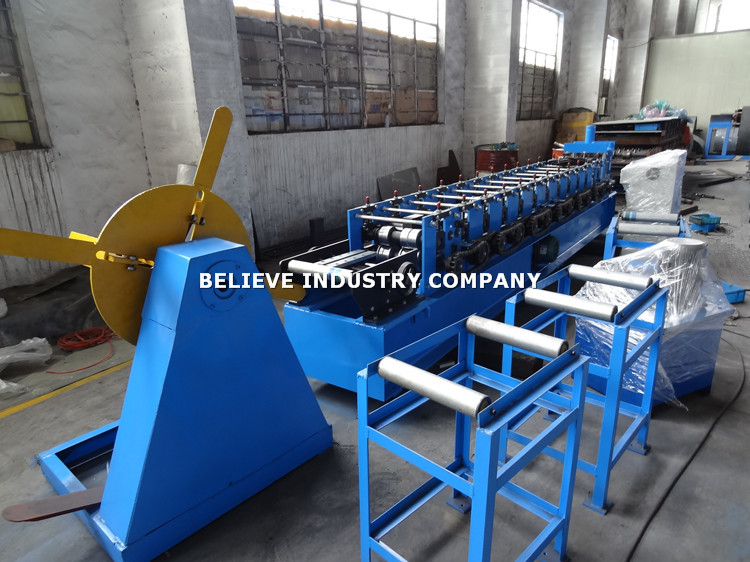

Machine Pictures:
Believe Industry Company has been engaged in cold roll forming machine designing and manufacturing for more than 15 years. We adopt advanced German roller design software COPRA to assist our machine design. We keep improving our technology to offer customers with best metal forming machine solution.
If you have any questions or need more machine details, please contact us.
