High Speed Cold Roll Forming Machine , Quick Interchangeable C Purlin Machine

Name: High Speed Cold Roll Forming Machine Quick Interchangeable C Purlin Machine
Brand: BELIEVE INDUSTRY COMPANY
Price: 32000 USD

High Speed Cold Roll Forming Machine , Quick Interchangeable C Purlin Machine Manufactures

Brand Name : BELIEVE INDUSTRY COMPANY

Model Number : C100-300

Place of Origin : Wuxi, China

MOQ : 1

Price : USD 32000-35000/ set

Supply Ability : 20 sets per month

Delivery Time : 50 to 60 days

Packaging Details : Nude Packing (roller surface covered plastic film)

Certification : CE

Payment Terms : T/T, L/C

Machine Type : Cold Roll Forming Machine

Machine Model : C100-300 C Purlin Machine

Drive : Double Chain Drive

Motor Power : 15KW

Thickness : Max 3.5mm

Machine Feature : Automatic width adjust

Contact Now

High Speed Quick Interchangeable C Purlin Machine Line | Believe Industry

Brief Description

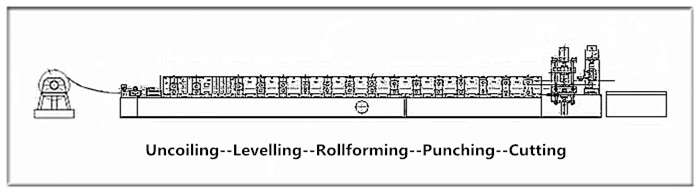

This C purlin machine is used to produce C-shape purlins with the web width from 100-300mm. Main components the whole line are decoiler, feeding guide, 7-roll leveling device, roll forming unit, hydraulic punching unit, post-cutting device, finished products receiving tables and hydraulic station, etc.

Machine Features

Strong Machine Structure: high quality H beam steel welded machine base, cast iron roll stands screwed on machine base
Machine base and roller stands go under processing by CNC gantry milling machine
Drive: double-chain drive
Automatic Width Adjust: one side of the roll stands can move in and out through the linear guide as an integration to change the gap between the opposite rolls to realizing the roll forming of c purlins with different dimensions
Post Punching And Cutting Device: punching pattens and cutting after roll forming

High Speed Cold Roll Forming Machine , Quick Interchangeable C Purlin Machine

**Main Machine Technical Specifications**
No.	Item	Technical Specifications
1.	Raw Material	Carbon Steel, Galvanized Steel, 235-345Mpa
2.	Material Thickness	1.5-3.0mm
3.	Material Width	Depend on specific profile
4.	Diameter of Shaft	70mm solid shafts
5.	Material of Shaft	45# steel
6.	Material of Rolls	GCr15 Over quenching HRC 58-62°
7.	Main Power	15KW
8.	Forming Speed	15-20m/min
9.	Forming Stations	14 stations
10.	Cutting Type	Hydraulic cutting
11.	Cutting Blade	Cr12 Mov

100-300 C Purlin Details

1. Model: C100-300

2. Applicable Material: cold rolled steel coils, galvanized steel coils

3. Material Thickness: 1.5mm - 3.0mm

4. Coil Width: 200mm - 500mm

5. Material Strength: 235Mpa

High Speed Cold Roll Forming Machine , Quick Interchangeable C Purlin Machine

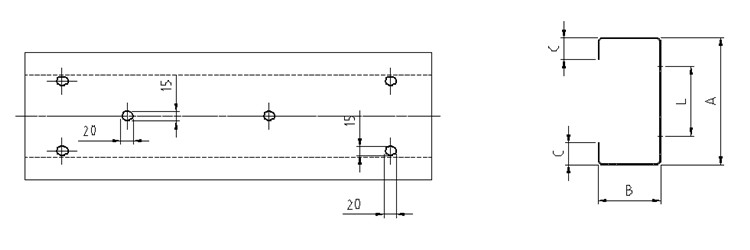

ALL UNIT IN MM

Item	A	B	C	L	Material Width
Item	A	B	C	L	T - 1.5	T - 3.0
1.	100	50	20	40-220	228	222
2.	150	50	20	40-220	278	272
3.	200	85	20	98-220	398	392
4.	250	85	20	148-220	448	442
5.	300	85	20	198-220	498	492

For more machine information, please contact us!
