C80-250 C Purlin Roll Forming Machine Line With Automatic PLC Control System
Brief Description
This C shape purlin machine is designed to produce C purlins with the web width from 80-250mm and thickness of 1.5mm to 2.5mm. Users need to adjust the spacers between rollers for roll forming each purlin dimension.
With hydraulically powered post-cutting device of this c purlin production line, users need to change cutting blades for each size. Believe Industry Company have developed a new cutting device with infinitely adjustment, with this new technology, only one cutting blade can meet all the cutting demands.
Machine Features
- With PLC automatic control system
- Electrically driven via 2.0" chain and sprocket
- Levelling device for good flatness of material before punching and roll forming
- Hydraulic punching unit placed before roll forming
- With Turkey straightner for perfect straightness of c purlins
Main Componnets of C80-250 Purlin Machine
| No. | Item | Quantity | Options |
| 1. | 3Ton Manual Decoiler | 1 set | Automatic Decoiler |
| 2. | Feeding Guide | 1 set | Servo Feeder |
| 3. | 7-Roller Leveller | 1 set | Individual Leveller |
| 4. | Pre-punching Unit | 1 set | Individual Punching Device / High Speed Power Press |
| 5. | C Purlin Rollformer | 1 set | Gear Box Drive, Automatic Size Adjust Design |

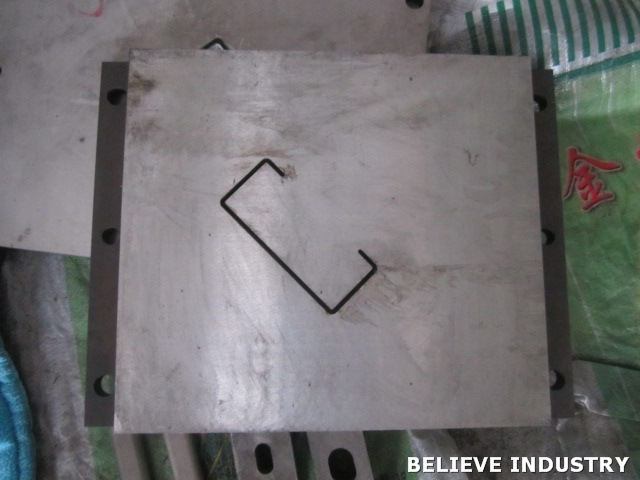

| 6. | Hydraulic Cutoff | 1 set | Infinitely Adjustable Cutting Device |
| 7. | Receiving Tables | 2 sets | Auto Stacker |
Main Technical Parameters
1. Applicable materials: galvanized steel coils, cold rolled steel coils
2. Material thickness: 1.5mm to 2.5mm
3. Roll forming stations: 13 stations
4. Roll forming speed: 10-15m/min
5. Main roll forming power: 15kw
6. Diameter of shafts: 70mm
7. Hydraulic power: 11kw for punching holes and cutting

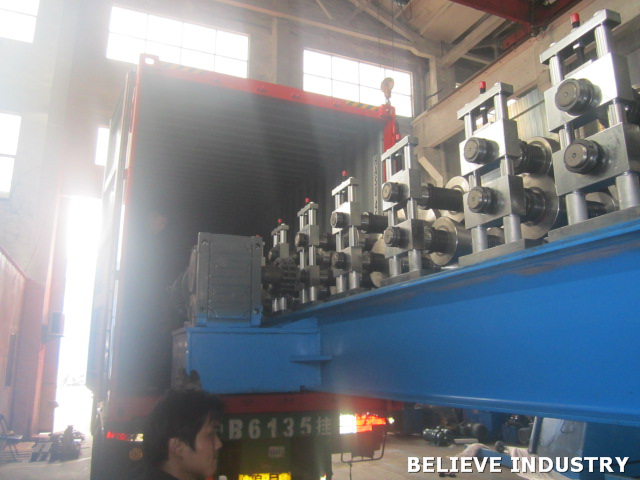

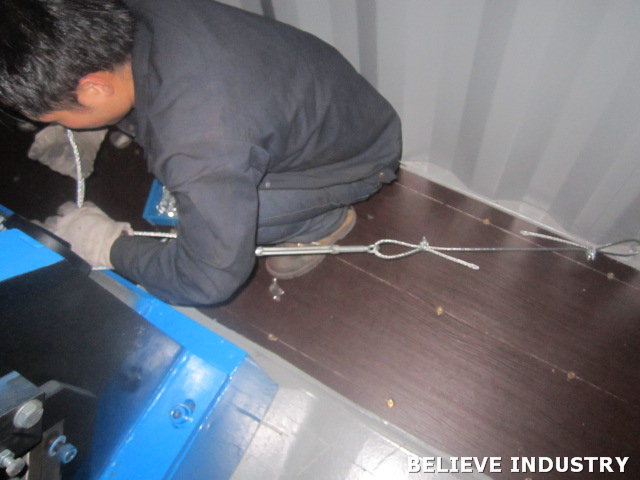

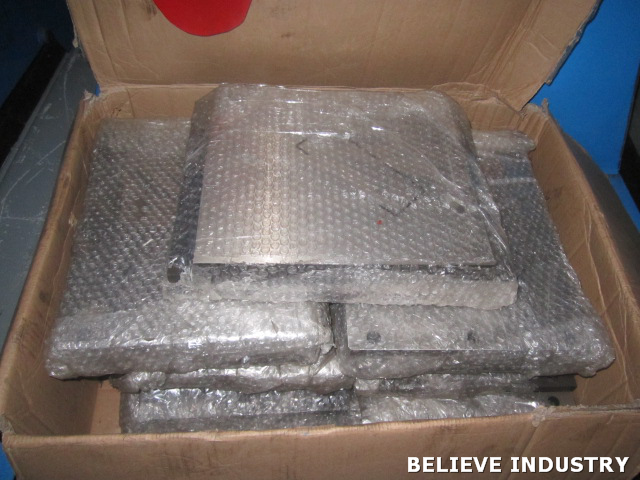

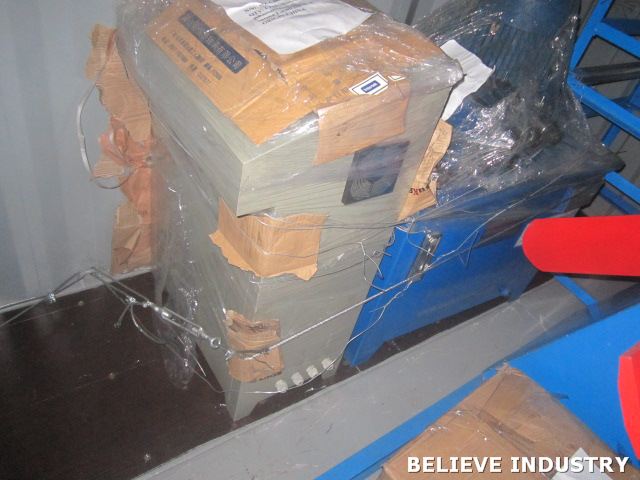

Packing And Delivery
